Description

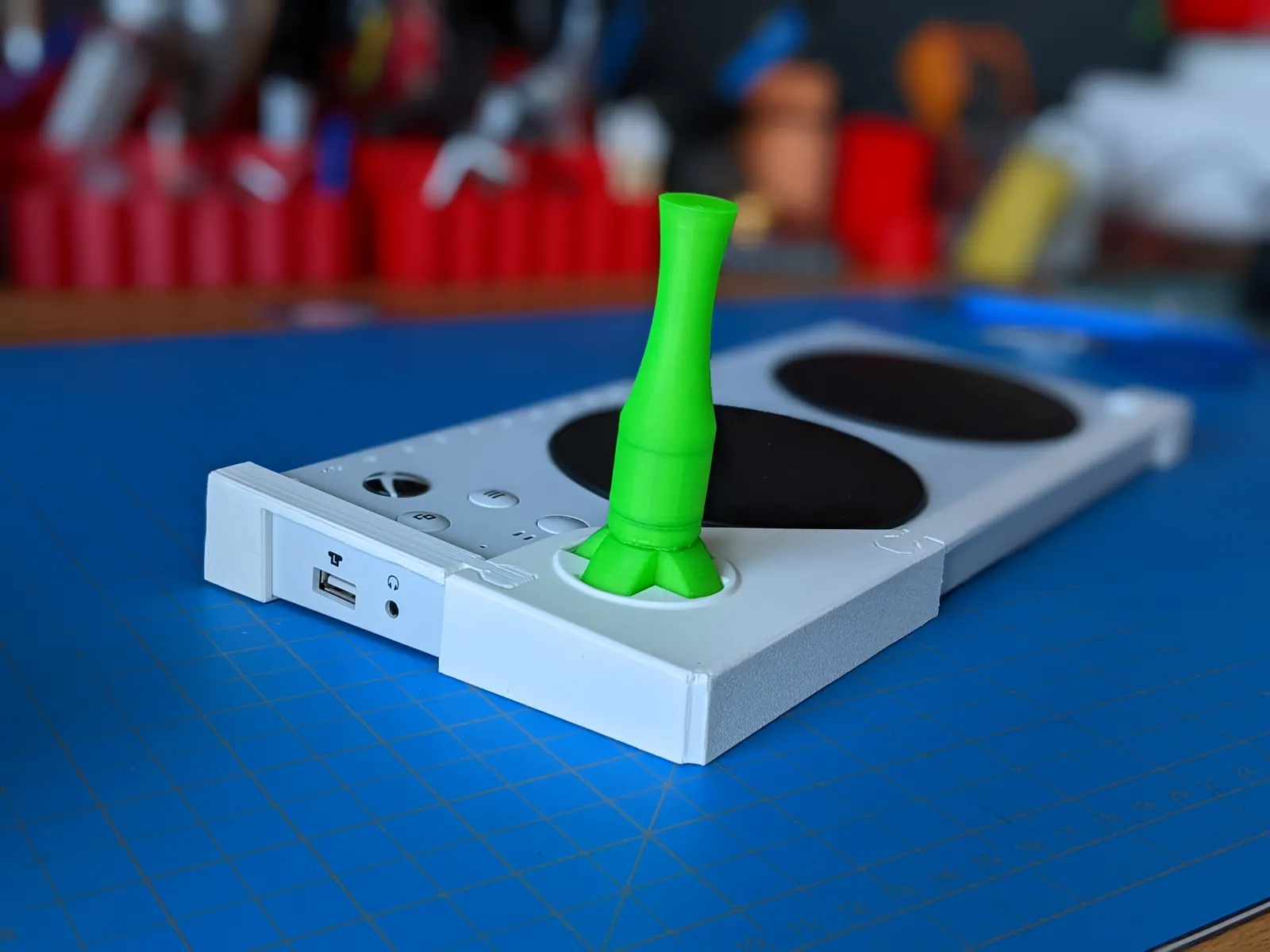

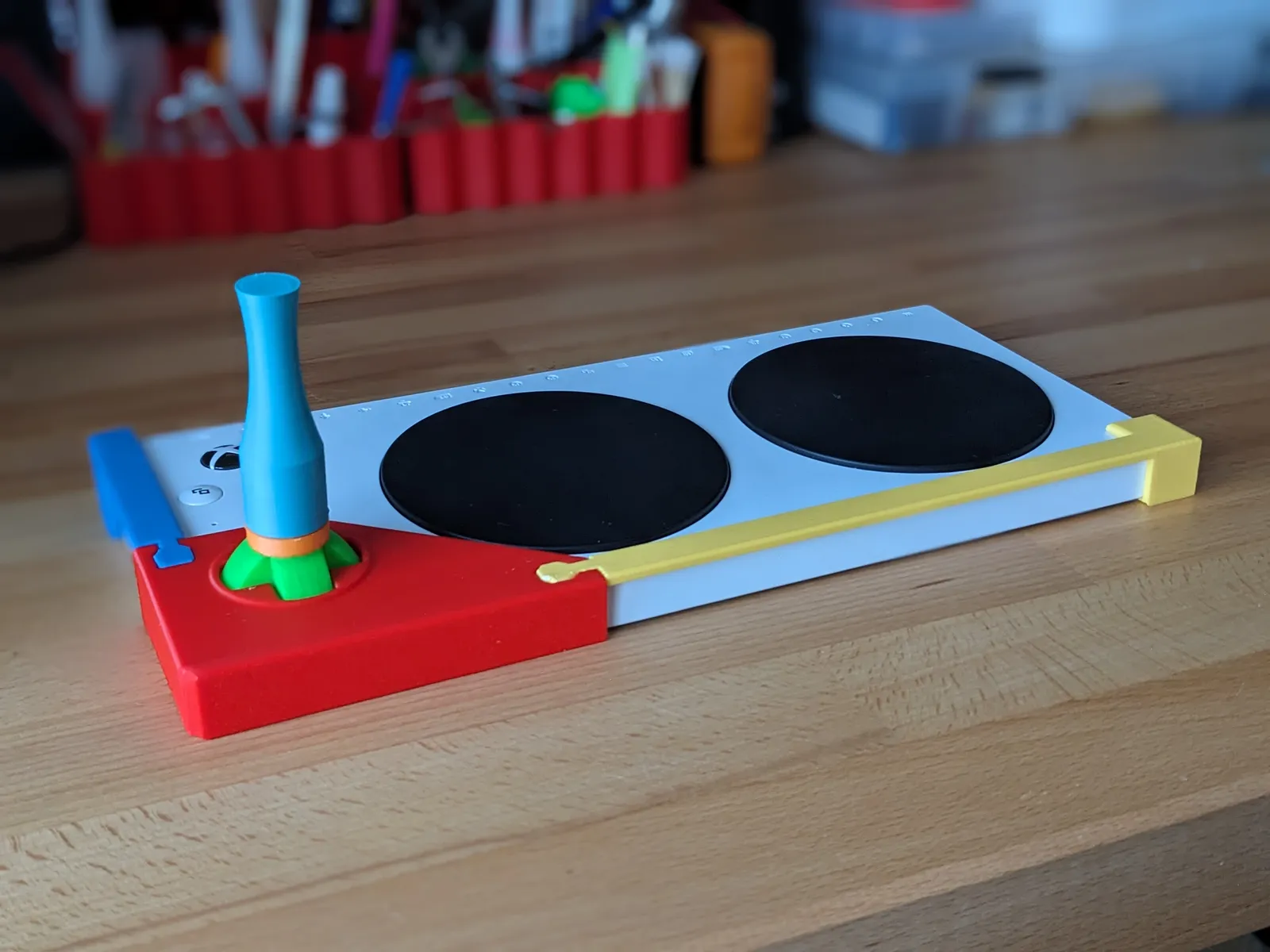

Fully printed clip-on adapter for the modular XBox Adaptive Controller joysticks made by Egon. No disassembly required!
Please provide feedback if you have any.
Assembly/Disassembly
Be careful to not put too much strain on the arm connection joints on the main D-pad clip. Due to the print orientation these are prone to breaking when stressed. I’m working on an updated design that allows the main clip to be printed in a stronger orientation.
- Put the HandiAdapter_Base into the D-pad clip.
- Screw the multitool adapter into the base to help hold the base in place.
- Slide the clip onto the XAC.
- Slide the end of an arm onto a corner of the XAC, gently bending the connector end upwards so that it can align with the opening on the main clip body.
- Press arm connector into the clip body. It is a press fit, but this should not require large amounts of force. Excessive force will damage the clip body. When in doubt, trim a little off of the arm connector and try again.
- Repeat for the other arm.
To disassemble, lift the arm connector out of the clip body first before attempting to remove the arm from the XAC. This avoids placing excess strain on the connection
Printing
Parts for the clip should be printed as oriented. 0.2mm layer height or lower.
Supports are required on the D-pad clip under the unbridgeable sections of the D-pad cutout and the right-side connection point, as well as on the connector ends of the clip arms. See slicer screenshot and 3mf file for details.
